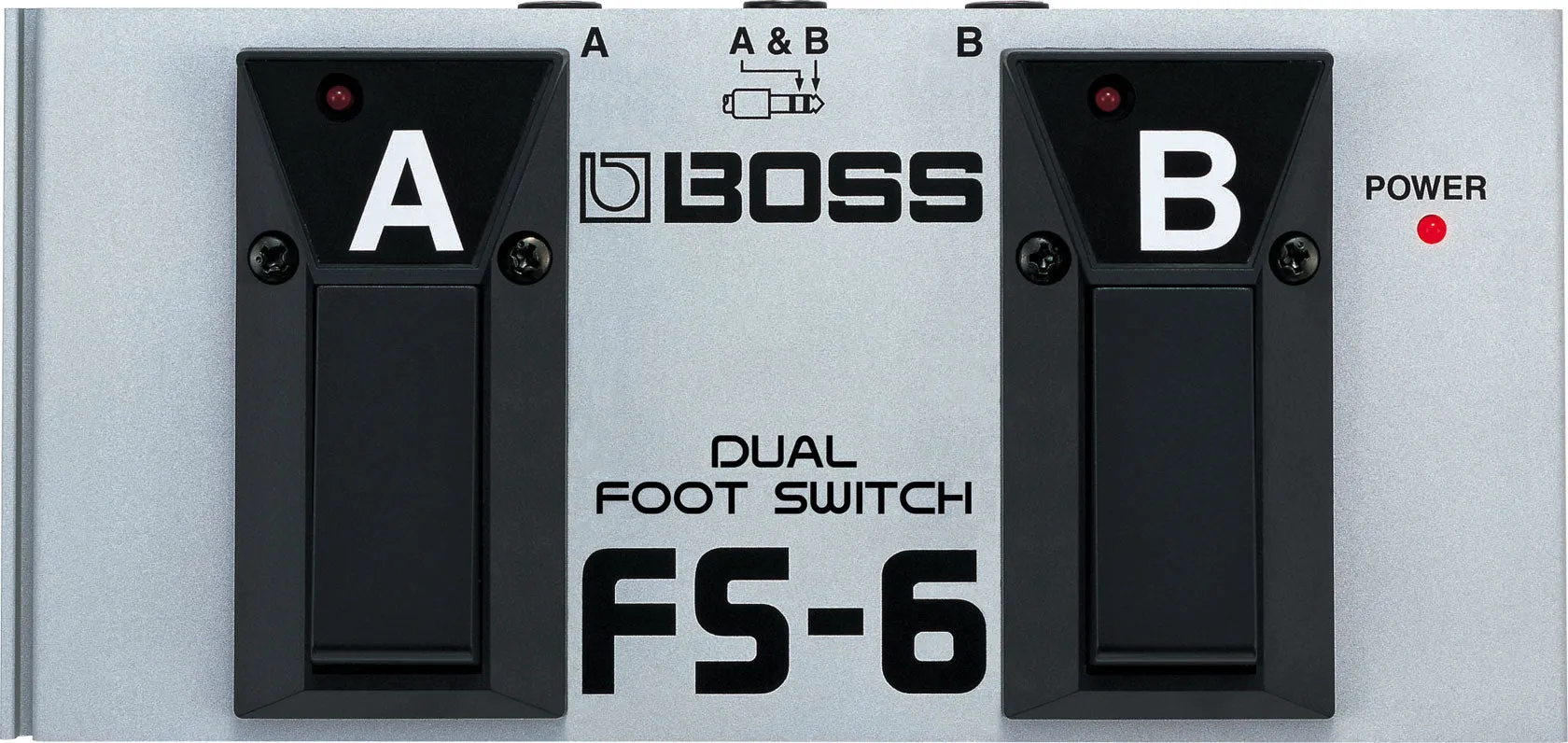

Two switches in one, BOSS’s FS-6 combines latch- and momentary-type switching into one unit. With two switches conveniently housed side-by-side, the FS-6 allows each switch to be set for latch or momentary operation. Pick the configuration that best suits your playing style and setup.


• Each footswitch can be assigned latch- or momentary-type
• Stereo input jack for single stereo cable connection
• Can be connected to other footswitches (FS-5L/FS-5U/FS-6/AB-2) for extension
• Connect to a wide variety of instruments, rhythm machines, guitar amps, and electronic devices that have control input jacks compatible with FS-5L/FS-5U

Controls

Pedal Switch A, B / POLARITY Switch A, B / Mode Switch A, B

Connectors

Jack A, Jack B (1/4 inch phone type)
Jack A & B (TRS 1/4 inch phone type)

Power Supply

DC 9 V: Dry battery/9 V 6F22 (carbon), 6LR61 (alkaline)

Current Draw

8 mA (max.)

Accessories

Dry battery/9 V (6F22), Owner's Manual

Size and Weight ( incl. battery )

Width

188 mm
7-7/16 inches

Depth

91 mm
3-5/8 inches

Height

43 mm
1-3/4 inches

Weight

470 g
1 lbs. 1 oz.

*The specifications are subject to change without notice.
