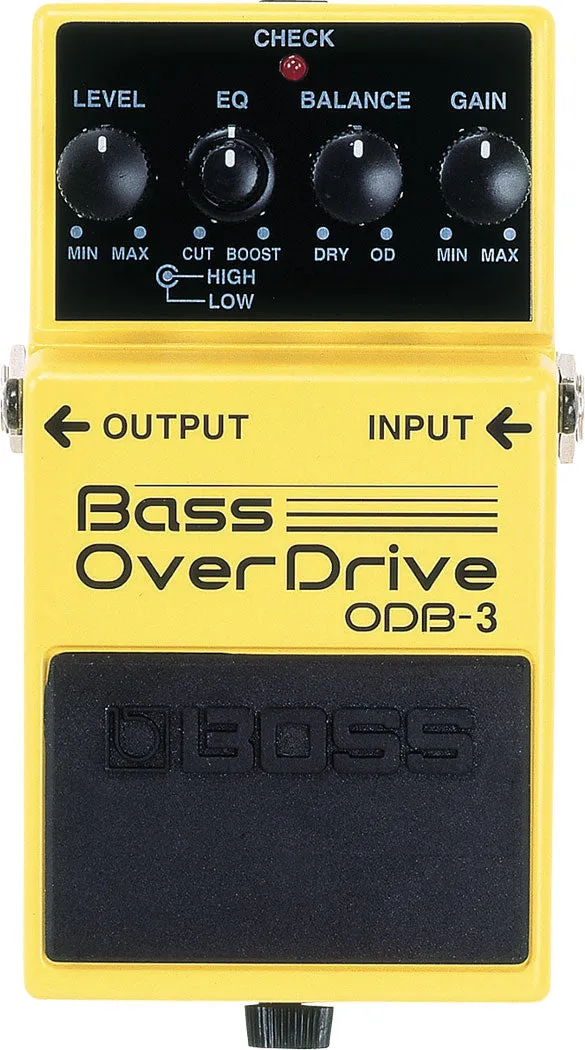

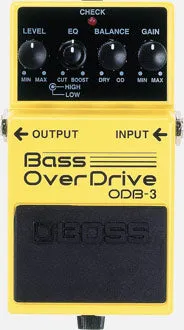

- OverDrive pedal specifically designed for bass
- Onboard two-band equalizer
- Balance knob controls dry/overdriven sound
- AC adaptor or 9V battery operation
- BOSS five-year warranty
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- GAIN knob
BALANCE knob
EQ HIGH/LOW knob
LEVEL knob
Pedal switch - Indicator
- CHECK indicator (Used for indication of check battery)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack - Power Supply
- Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) - Current Draw
- 20 mA
- Expected battery life under continuous use
- Carbon: Approx. 24.5 hours
Alkaline: Approx. 40.5 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22) - Options (sold separately)
- AC adaptor: PSA series
- Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 390 g
14 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
