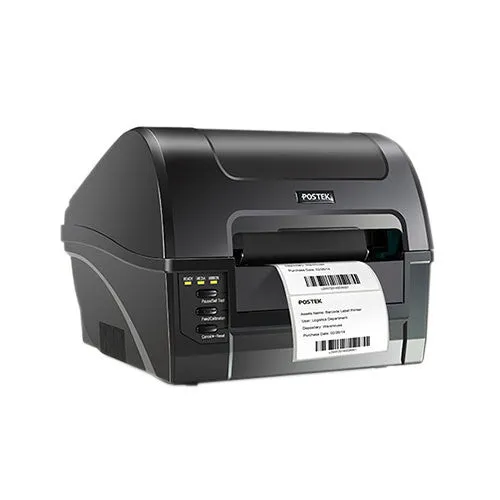

Long lasting durability and ease of use, plus affordability are the hallmarks of the C168 Series compact printer.
The direct thermal and thermal transfer printing modes and an adjustable Reflective Media Sensor affords users a wide range of media choices and printing flexibility.
Benefits
Both reflective & transmissive sensors promote great flexibility to print on most types of labels including continuous, labels with gaps, labels with marks and even labels with holes.
The Free External Media stand easily increases the media capacity fourfold, saving you time on changing the media, which greatly enhances the efficiency.
All rotating parts are supported by ball bearings or fixed bearings, thereby eliminating wear caused from direct contact with plastic.
C168 is manufactured with the Industrial Class Stepping Motor used on our commercial models, ensuring strong power and stable performance.
Specification
Model C168/200s
Printing Method Thermal Transfer
Printing Resolution 203 dpi
Max Printing Speed 4 ips (101.6 mm/s)
Max Printing Width 4.25″(108 mm)
Max Printing Length 157″(4000 mm)
Memory Roll-feed, die-cut, continuous, tags, tickets in plain paper or thermal paper
Media
Width: 4.72” (120 mm) max., 0.98″(25 mm) min.
Supply roll: OD 4.49″(114 mm) max., ID 1″(25.4 mm) min.
Thickness: 0.003″~ 0.006″(0.08 ~ 0.15 mm), including liner
Ribbon Wax, Wax/Resin, Resin
Ribbon roll: OD 3″ (76.2 mm) max., ID 1″ (25.4 mm) core
Max width: 4.3″(110 mm); Max length: 360’ (110 M)
Media Sensor Reflective (multiple mounting positions) / Transmissive (Adjustable)
Fonts Five built-in ASCII fonts, Downloadable TrueType fonts
Bar Code Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5,
UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc.
2D Barcode: MaxiCode, PDF417, Data matrix, QR Code, etc.
Interfaces USB DEVICE 2.0, RS-232 Serial
Power Rating 24 VDC Power adapter
Weight 2.8 kgs
Dimensions W 8.3″(210 mm) x D 10″(255 mm) x H 5.9″(150 mm)
Operating Environment Temperature: 32°F ~ 104°F (0℃~ 40℃ ),
Relative humidity: 5% ~ 85% non condensing
Storage Environment Temperature: -40°F ~ 140°F (-40℃ ~ 60℃),
Relative humidity: 5% ~ 85% non condensing
Accessories Standard Item: External Media Stand;
Optional Items: External Label Rewinder, Guillotine Cutter, Media Guide Adaptor
