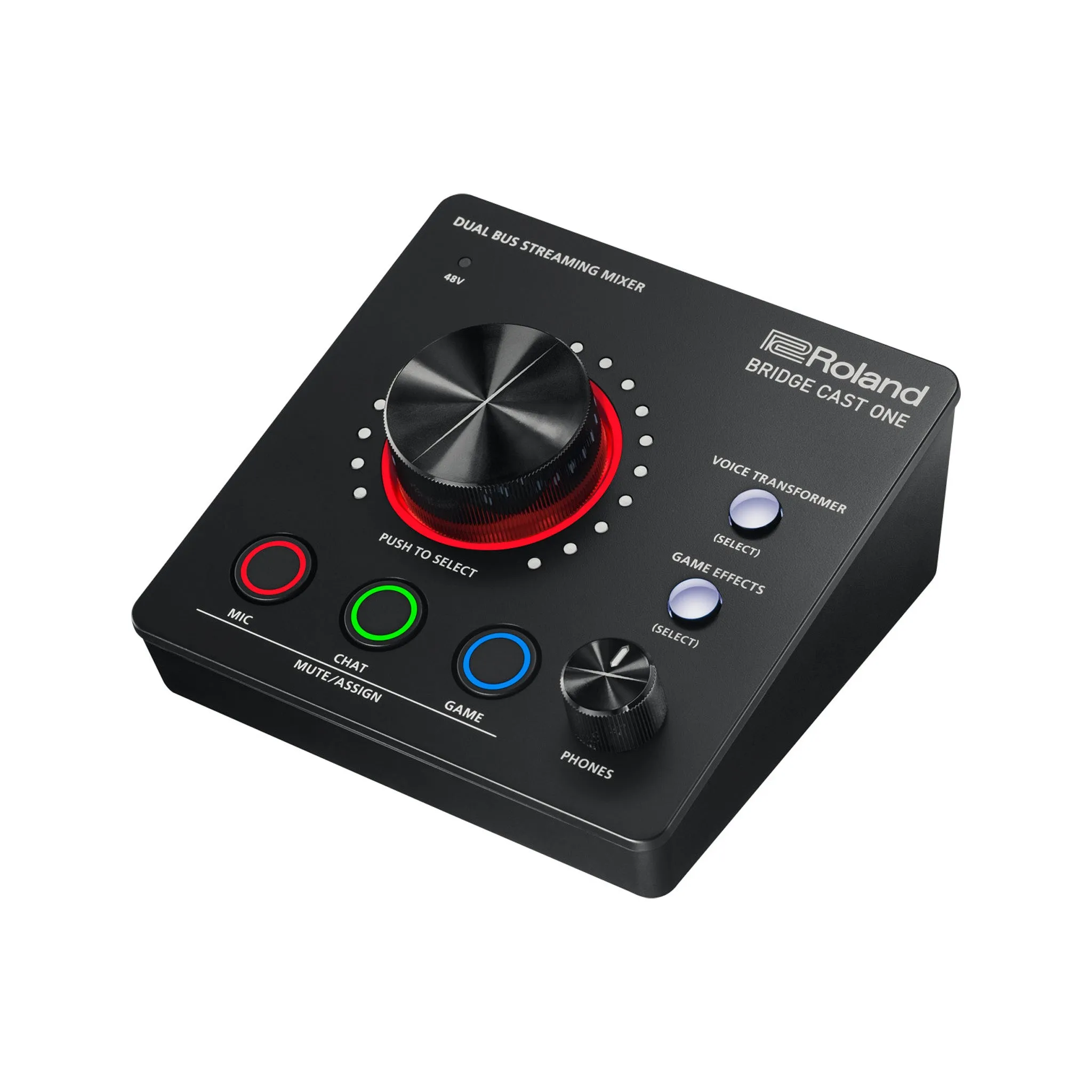

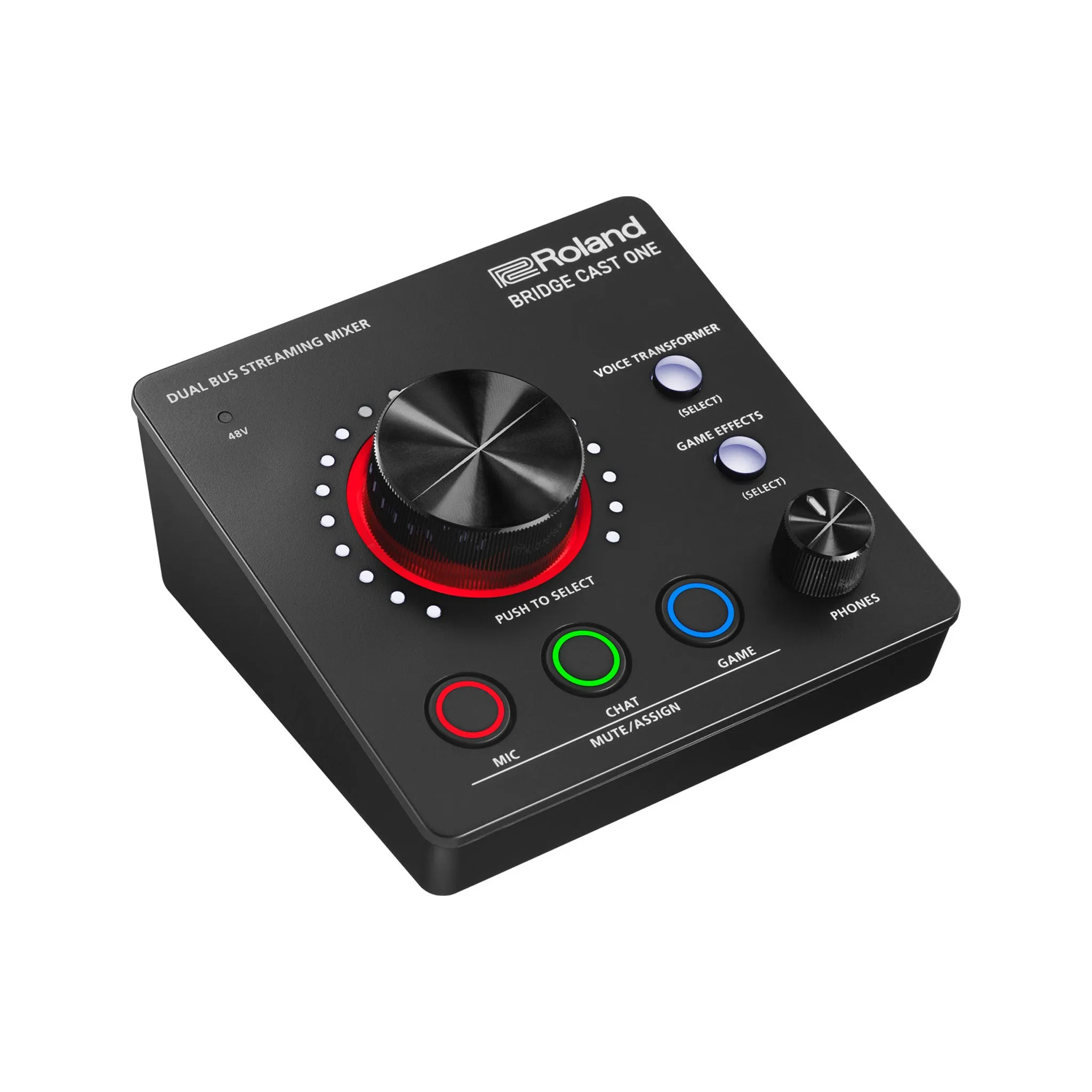

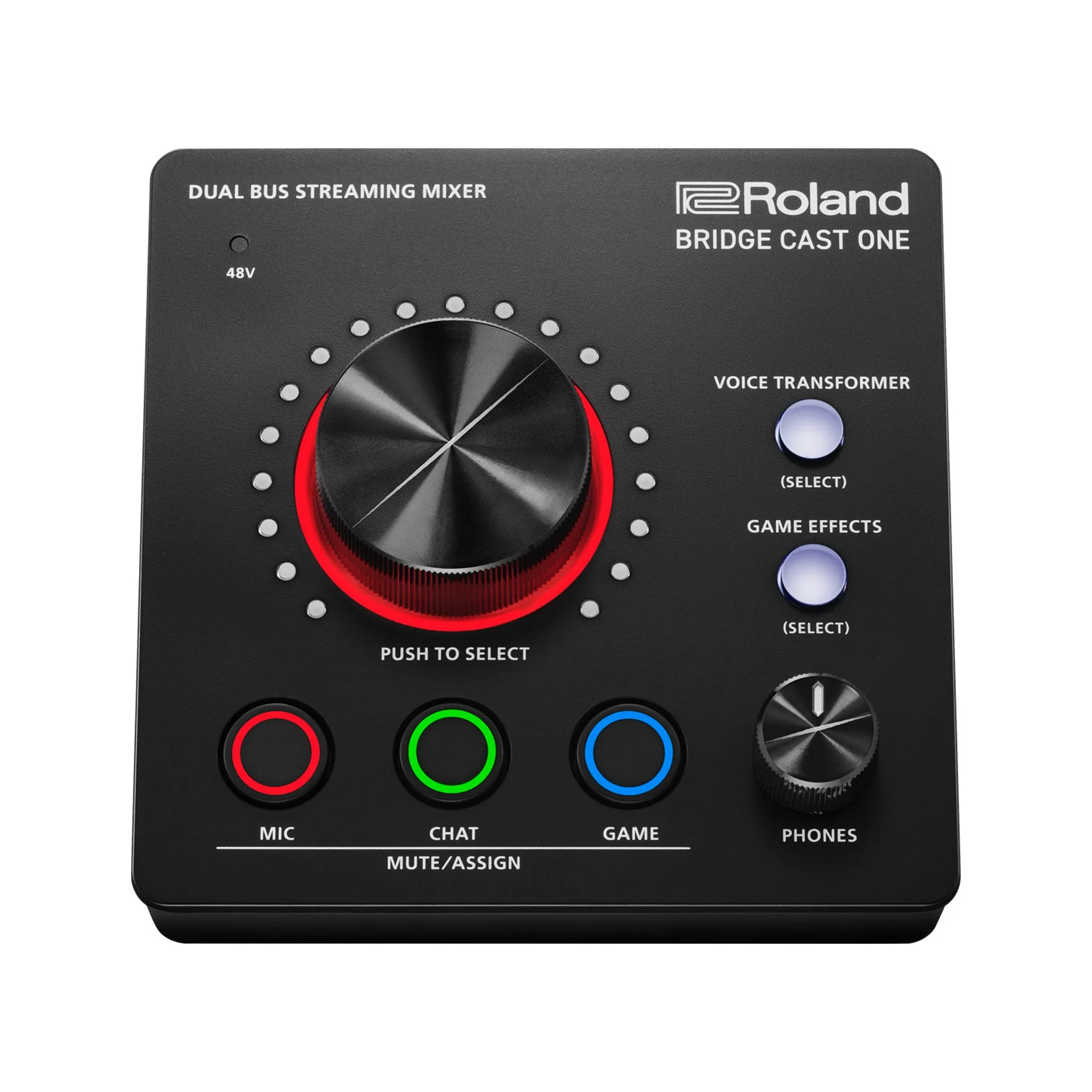

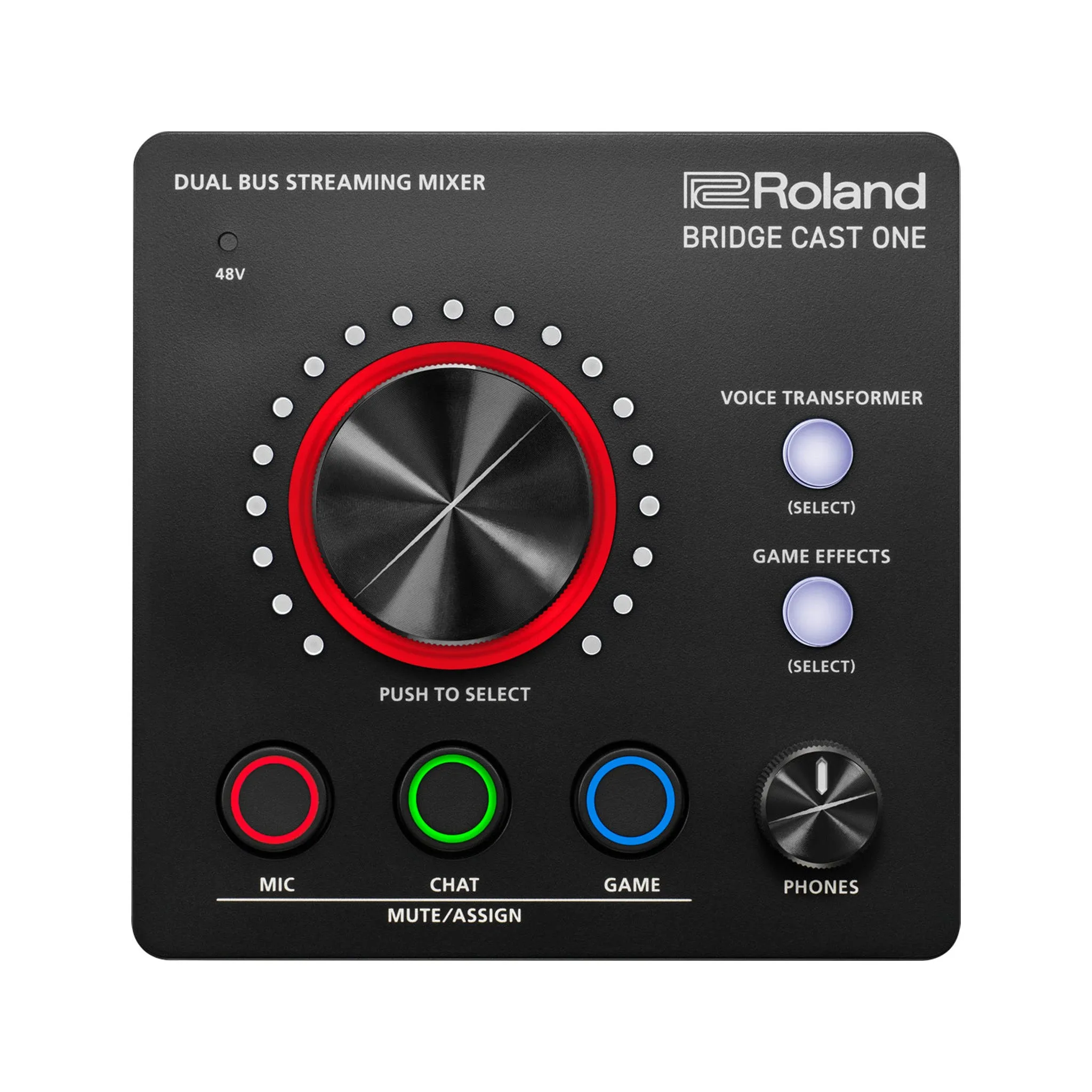

Level up your gaming and streaming sound with BRIDGE CAST ONE, a compact live-streaming audio mixer with hands-on controls. Gain a competitive advantage with powerful features like dual bus mixes, vocal transformer effects, fast-access presets, and support for a broadcast-grade mic and headphones. For even more control, the companion BRIDGE CAST app offers extended audio tools and royalty-free background music and sound effects through BGM CAST on Roland Cloud.

Features:

• Compact desktop streaming interface with core BRIDGE CAST audio features
• Powerful 32-bit hardware DSP allows you to dedicate all your computer resources to gaming and streaming
• Create independent mixes for you and the online audience with dual audio busses
• USB-C connectivity with Windows and Mac computers, the Sony PlayStation®5 console, and Nintendo Switch
• High gain ( 75 dB) XLR microphone preamp with phantom power for broadcast-grade mics
• Mic rehearsal feature for fast and easy audio setup
• High-quality vocal processing: EQ, compressor, noise suppressor, de-esser, and reverb
• Headphone jack with a professional high-sensitivity output and support for a headset or inline mic
• 5.1 or 7.1 USB virtual surround sound audio and 10-band EQ
• Enhance your gaming performance with five customizable Game Effects presets
• Game effects limiter to lower loud game sounds
• Voice transformer effects derived from the Roland VT series
• Delay function to synchronize audio with video when needed
• Aux input for playing audio from a smartphone or external device
• Customize settings and save hardware configurations with the BRIDGE CAST app
• Add royalty-free background music and sound effects to your streams with BGM CAST, available through the BRIDGE CAST app and Roland Cloud

Specifications:

• Input: Mic, Aux, USB Chat, USB Game (Speakers), USB Music, USB System, USB Console (Speakers)
• Output: Line Out, Phones, Aux, USB Mic, USB Stream, USB Personal, USB Console (Microphone)
• Audio Mixing Bus: 2 (Stream Mix, Personal Mix)
• Sampling Frequency: 44.1 kHz, 48 kHz, 96 kHz (Windows), 48 kHz (Mac OS/Others)
• Signal Processing: 24-bit AD/DA, 32-bit Floating Point (Internal Processing)
• Effects: [Mic] Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut, [Chat] De-esser, Compressor, [Game/Aux] Equalizer, Limiter, Virtual Surround, [Stream] Delay

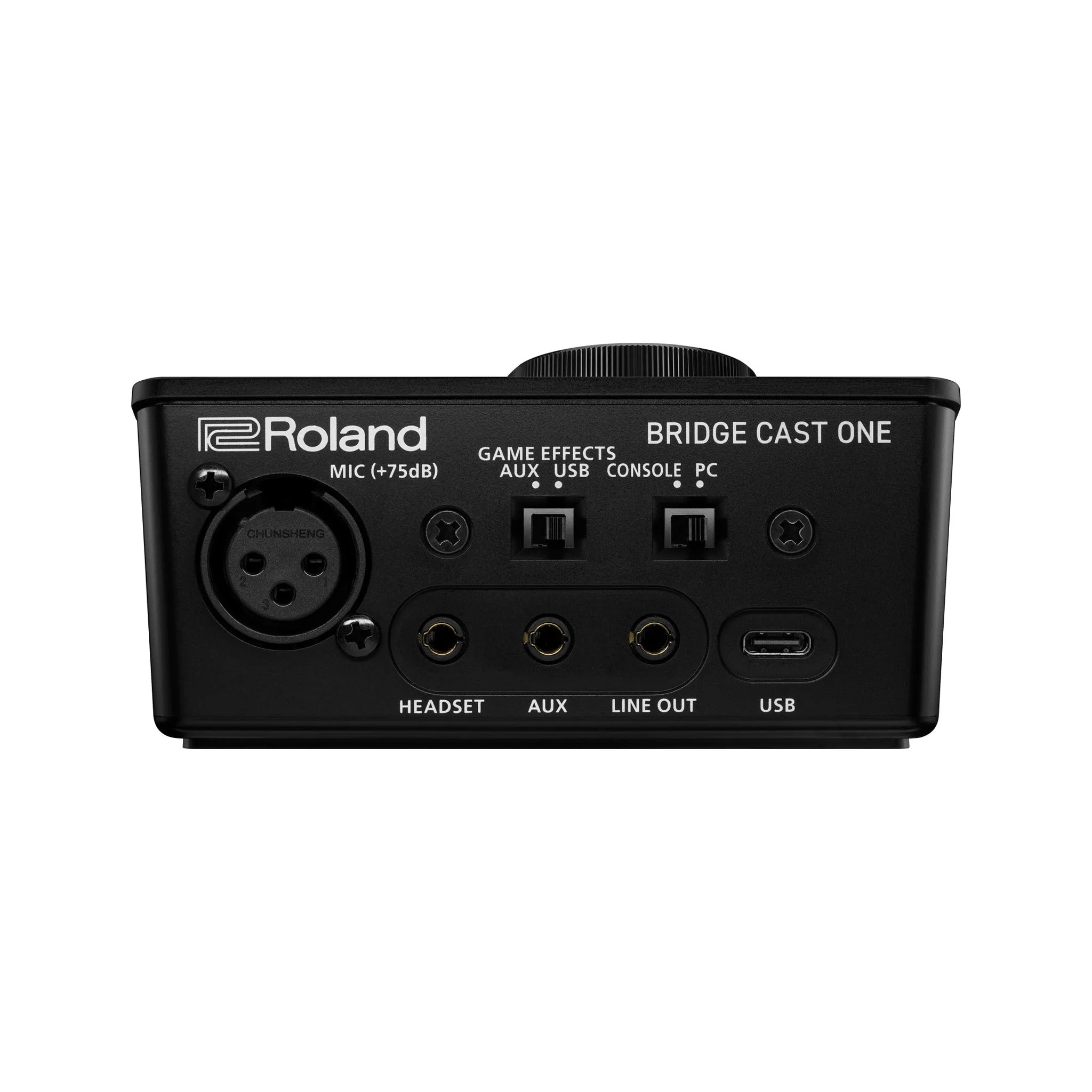

• Connectors: Mic jack: XLR type (Phantom power DC 48 V, 6 mA Max), Headset jack: Stereo miniature phone type (CTIA, Plug-In power), AUX jack: Stereo miniature phone type (TRRS), Line Out jack: Stereo miniature phone type (TRS), USB port: USB Type-C (R) (Audio/MIDI/HID Supported)
• Power: USB Bus Power
• Current Draw: 5 V DC, 900 mA
• Operating System: Microsoft Windows 10, Windows 11, Apple macOS 12 or later
• Included Accessories: Leaflet "Read Me First", USB 2.0 Type-C to Type-C Cable (2 m, 6.5 feet)
• Dimensions: 111mm (W) x 109mm (D) x 56mm (H)
• Weight: 275 g / 9.7 oz
