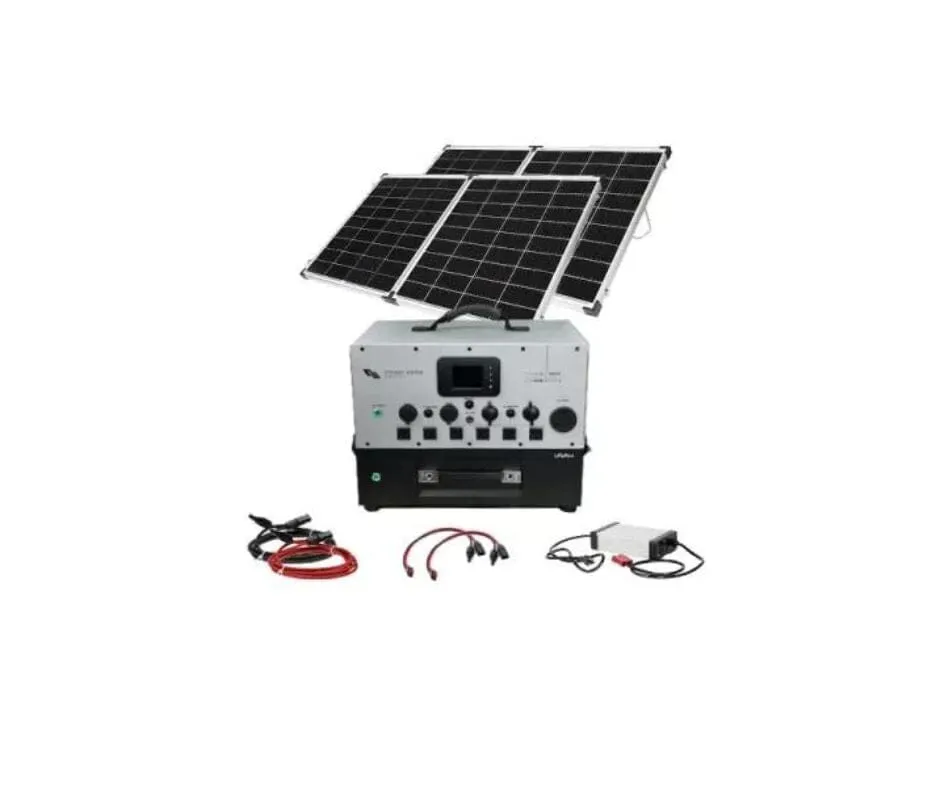

The Titan 400 Briefcase Kit comes complete with everything you need for a reliable, off-grid power system for any situation. Ideal for power outages, camping, and recreational vehicles, this kit combines the longevity of rigid panels with the portability of flex panels. With two 200 watt briefcase solar panels and one lithium battery pack, it's the perfect size for running basic essentials including a refrigerator or freezer, lights, computer or laptop, tv, and other small electronics for an extended period of time. Utilizing the 400 watts of solar, the Titan will charge from 0% battery to full in about six hours (depending on location and weather).
Battery specs for each battery:
Battery Voltage:
27.2v
Battery Capacity:
90ah (usable) 2500 watt hours (usable)
Maximum charge current:
50A (approximately 1300 watts)
Maximum continuous discharge:
130A (approximately 3500 watts)
Maximum surge discharge current (10 seconds or less):
300A (approximately 7700 watts )
Weight:
47lbs
Size:
12×18.5×5 in (not including the feet)
Inverter Specs:
Output voltage:
120V AC (pure sine wave)
Continuous power output:
3,000 Watts
Peak power output:
6,000 watts for 5 seconds
Inverter no load power consumption:
5-15 watts (typical 10 watts)
Size (top portion not including the battery):
12 x 18.5 x 8.5 in (not including the feet or cary handle)
Weight:
37lbs
Solar MPPT charge controller:
Dual MPPT controllers
Input volts:
35V to 240VDC
Maximum input amps:
30 amps per input port
Maximum charging amps:
80A (40A per port)
Charge rate:
up to 2000W (using both ports, and at least two batteries)
Solar panel specs (per panel):
Maximum power (Pmax)
200 watt
Voltage maximum power (Vmp):
Series: 36.6 V
Parallel: 18.3 V
Current maximum power (Imp):
Series: 5.46 A
Parallel: 10.9 A
Open circuit voltage:
Series: 43.6 V
Parallel: 21.8 V
Dimensions:
54″ x 31″ x 1.5″ – unfolded
27″ x 31″ x 3″ – folded
Weight:
33 lbs
Other specs:
AC charging:
Up to 2800 watts with four 25A chargers (must have two batteries to use three or 4 ac chargers)
Car port charging:
85 watts (with optional charger)
Number of outlets:
6-15A, and one 30A RV outlet
USB ports:
two 65 watt usb-C
3A usb-A
12V ports:
2 - cigarette ports
1- SB50 port
Regulated 13.8V. Max 20A total
Weight:
37lb power module; 47lb battery
Dimensions:
18.5x12x13.5 (battery and Power module together, not including the feet or cary handle)
Add-on specs:
RV waterproof entry:
This will include one or two (depending on the kit) water proof boxes that mount to the top of your rv. This will allow you to connect your solar through your roof and to the Titan 240sp power station. It comes with 25' of wire and anderson power pole connectors to plug directly into the power station.
Cart with wheels:
Our heavy duty cart is capable of holding up to 1200 lbs, and it connects directly to the bottom of a power station or a battery.
Batteries:
Your kit will come with some batteries (depending on the kit), but you can add more fore even more energy storage. Each battery will add an extra 2500 watt hours of storage.
Warranty:
By adding the warranty addon, it will extend the warranty from 5 years to 10 years for all batteries and power module in the kit, and any batteries added.
